Buehler · Abrasive & Precision Sectioning

AbrasiMet® M Manual Abrasive Sectioning Machine

12″ Benchtop Manual Abrasive Cutter for High-Paced Sectioning

The AbrasiMet M manual abrasive cutter is a benchtop cutter and the ultimate 12″ manual abrasive sectioning machine, designed to be easy to use, durable, and versatile for your cutting needs. This cut-off saw is ideal for easy sectioning in high-paced environments. Combine with Buehler's abrasive blades for a complete sectioning solution providing optimal sample quality and fast cutting time.

4.3in [109mm]Cut Capacity
10in / 12inCompatible Blade Sizes
5.5hp [4kW]Motor Power at 220VAC
📝 Request a Quote 📞 Call Now 💬 WhatsApp

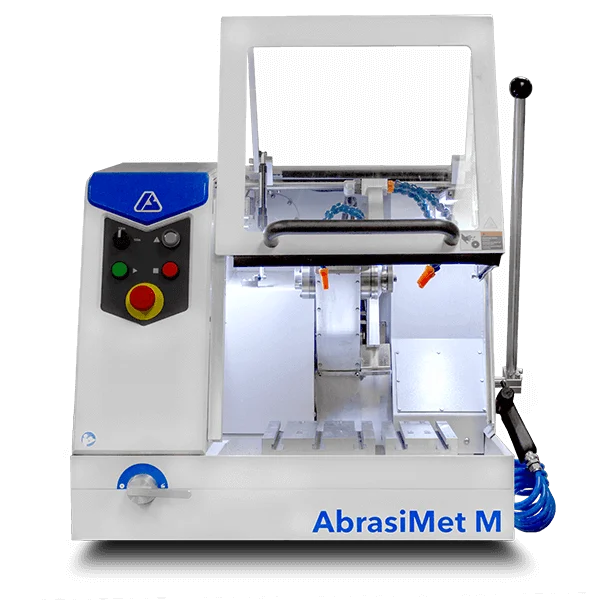

Buehler AbrasiMet M manual abrasive sectioning machine — 12 inch benchtop cutter

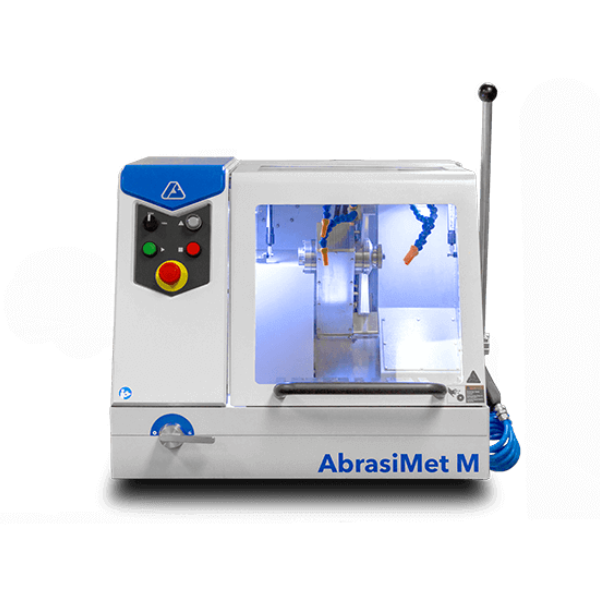

Buehler AbrasiMet M — benchtop manual abrasive sectioning machine

AbrasiMet M Benefits

Built for fast, easy cutting, great sample quality, and low-maintenance day-to-day use.

Fast and Easy Cutting

  • Large motor for cutting through any sample
  • Bright chamber lights and large window
  • Quick locking nut for tool-less blade change
  • Dual cut accessory for achieving 2 cuts at once
  • Various vise table positions for compatibility with any 12mm vise
  • Adjustable cutting handle for best ergonomics

Achieve Great Sample Quality

  • 6 coolant nozzles for fast cooling
  • Motor speed variation based on blade size for optimal rotation speed
  • High cutting handle feedback allows users to quickly adjust cut force

Easy to Maintain

  • Enclosed motor to keep coolant and debris out
  • Filtering recirculation system to decrease cleaning time
  • High flow manual cleaning nozzle

Ordering Information

Available in three voltage configurations. Contact Censico for current pricing and lead times.

AbrasiMet M

Part NumberVoltage
10-10107-200200–240VAC, 50–60Hz
10-10107-400380–460VAC, 50–60Hz
10-10107-200CSA 200–240VAC, 50–60Hz

Technical Specifications

Full specification sheet for the Buehler AbrasiMet M.

AbrasiMet M
Motor Power at 220VAC5.5hp [4kW]
Main Power200–240VAC or 380–460VAC, 3 Phase, 50/60Hz
Blade Movement AxisZ-Axis
Maximum Sample Width25in [635mm]
Blade Sizes10in [254mm] / 12in [304mm]
Blade Table Clearance6.8in [172mm] / 5.8in [147mm]
Cut Capacity4.3in [109mm]
Blade Speed3000rpm / 2600rpm
Lighting2 LED strips
Dual Blade Cutting Width0.06in–1in [1.52mm–25.4mm] @ .6in increments
Machine DimensionsWidth: 31.1in [791mm]; Depth: 27.3in [694mm]; Height: 25.7in [653mm] hood closed, 36.2in [919mm] hood open
T-Slot Table Dimensions9.8 x 7.1in [250 x 180mm] (L); 9.8 x 4.5in [250 x 115mm] (R)
Safety FeaturesInterlock Hood Switch, Emergency Stop
ComplianceCE Directives

Applications & Industries Served

The AbrasiMet M is used wherever labs need fast, reliable manual sectioning of samples ahead of mounting, grinding, and polishing.

Typical Applications

  • Metallographic sample preparation prior to mounting and polishing
  • Failure analysis and root-cause investigation
  • Weld and joint cross-section inspection
  • Heat-treatment and case-depth verification
  • High-volume, high-paced routine sectioning

Industries Served

Automotive Aerospace Academic & Research Institutions Government & Defence Labs Quality Control Laboratories Foundries & Metal Processing

Accessories & Compatible Consumables

Pair the AbrasiMet M with genuine Buehler consumables and accessories for optimal cut quality and blade life.

Buehler Abrasive Cutting Blades (10in / 12in) Coolant & Recirculation Fluid 12mm Vise & Sample Clamping Fixtures Dual Cut Accessory Advanced Recirculation System for AbrasiMet M

View all sectioning consumables →

Downloads

Product literature for the AbrasiMet M — coming soon.

Related Sectioning Machines

Other precision sectioning machines in Buehler's range.

AbrasiMatic® 300

Automatic & manual 12″ benchtop abrasive cutter for high-volume labs.

View Product →

ISOMET® High Speed Pro

High-speed precision saw for demanding sectioning applications.

View Product →

ISOMET® 1000

Precision low-speed saw for delicate, damage-free sectioning.

View Product →

PETROTHIN®

Precision sectioning & thinning machine for petrographic samples.

View Product →

Frequently Asked Questions

Tap a question to expand it.

What is the Buehler AbrasiMet M used for? ▾
The AbrasiMet M is a 12-inch benchtop manual abrasive cutter used to section metallographic and materials samples ahead of mounting, grinding, and polishing. It's built for durability and speed in high-paced lab environments.
What is the maximum cut capacity of the AbrasiMet M? ▾
The AbrasiMet M has a maximum cut capacity of 4.3 inches (109mm), and accepts abrasive blades in 10in (254mm) or 12in (304mm) sizes.
Does the AbrasiMet M support cutting two samples at once? ▾
Yes. The optional dual cut accessory lets you achieve two cuts in a single pass, with a dual blade cutting width range of 0.06 to 1 inch (1.52 to 25.4mm) in 0.6 inch increments.
What blade sizes are compatible with the AbrasiMet M? ▾
The AbrasiMet M is compatible with 10-inch (254mm) and 12-inch (304mm) abrasive blades, with a tool-less quick locking nut for fast blade changes.
Where can I buy a genuine Buehler AbrasiMet M in India? ▾
Censico International Pvt. Ltd. is Buehler's exclusive distribution partner for the Indian Subcontinent. You can request a quote for the AbrasiMet M directly through Censico, with pan-India delivery and technical support.
